JAQUAR FAUCETS  |  SKU: SNR-STL-51087  |  Code: 23193

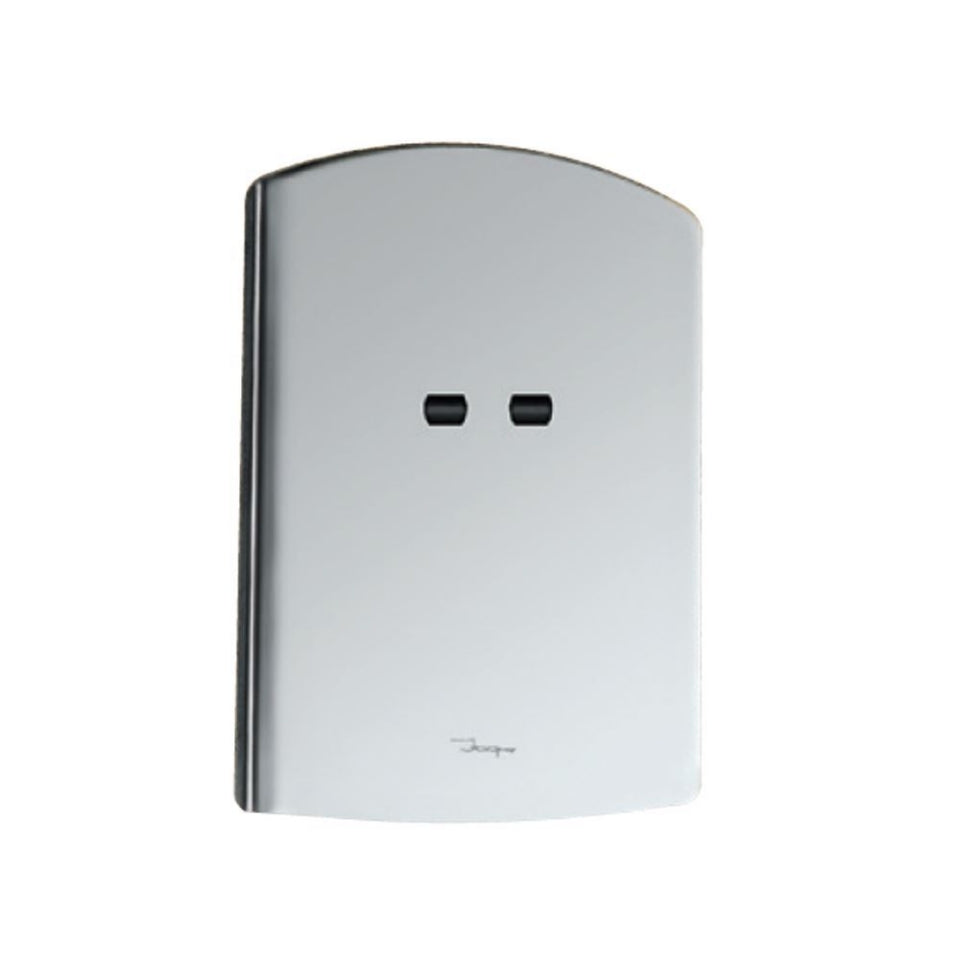

CON.TYPE URINAL F/VLV W/BOX (BATTERY OP)- JAQUAR FAUCETS - ( STL - SENSOR - 0x15 mm - 0inchX0.5inch )

₹ 8,820  ₹ 9,800 / Pcs
Tax included

Measurable Sale of Unit: Pcs

Visual : https://webapplication.tilesdisplay.in/frontend/login-with/api/eyJpdiI6IlNHZ2NTRFFTMlVlTnN5WHk1bE5uVlE9PSIsInZhbHVlIjoiYzBnV3QxQXAyU1dIZmJYYmQ0d2tyQT09IiwibWFjIjoiZDRjYjY3MjY5Zjg2ZDkxZGU2M2Y3MDA1NjIzMGQ0ZTNmNzRkYTQzYTNjNWU2MWI3NjA5YWQ4MDBlN2Q1NGRmZSJ9?width=960&height=960&matt=0&path=https://www.chabsons.com/cdn/shop/files/SNR-STL-51087_1.jpg?v=1755157764   https://webapplication.tilesdisplay.in/frontend/login-with/api/eyJpdiI6IlNHZ2NTRFFTMlVlTnN5WHk1bE5uVlE9PSIsInZhbHVlIjoiYzBnV3QxQXAyU1dIZmJYYmQ0d2tyQT09IiwibWFjIjoiZDRjYjY3MjY5Zjg2ZDkxZGU2M2Y3MDA1NjIzMGQ0ZTNmNzRkYTQzYTNjNWU2MWI3NjA5YWQ4MDBlN2Q1NGRmZSJ9?width=960&height=960&matt=0&path=https://www.chabsons.com/cdn/shop/files/SNR-STL-51087_1.jpg?v=1755157764
Estimated Shipping Date - Friday, 19 Jun 2026

Specification & Features
  • Inlet Water Connection 1/2”BSP / 15mm
  • Flow Rate 2.0 LPF @ 3.0 bar
  • Recommended Water Pressure 0.5 Bar - 5.0 Bar ( Ideal : 1.0 - 3.0 bar)
  • Flush Volume: Adjustable flush volume, typically around 1.0 to 1.5 liters per flush
  • Power Source 9 Volt Battery-Ultralife Lithium, U9VL-J-P 1200mAh
  • Type: Sensor-activated concealed flush valve
  • Power Source: Battery operated
  • Includes: Complete set with installation box and control cock
  • Finish: Typically chrome-plated for durability and aesthetic appeal
  • Installation: Designed for concealed wall mounting, integrating seamlessly with urinal systems
  • Touch-Free Operation: Utilizes infrared sensor technology to detect user presence, ensuring hygienic and water-efficient flushing without physical contact.
  • Battery Operated: Eliminates the need for electrical wiring, simplifying installation and maintenance.
  • Automatic Flushing: Automatically flushes the urinal after use, promoting water conservation and hygiene.
  • Maintenance Mode: The control cock allows for manual operation during maintenance or in case of sensor malfunction.
  • Commercial Restrooms: Ideal for use in office buildings, shopping malls, airports, and other high-traffic areas.
  • Public Facilities: Suitable for public restrooms where hygiene and water efficiency are priorities.
  • High-End Establishments: Perfect for hotels, restaurants, and luxury facilities aiming to provide a premium restroom experience.

Care information
  • Wipe the visible parts of the flushing valve and sensor area regularly with a soft, damp cloth to remove dust and dirt.
  • Use mild soap or non-abrasive cleaners. Avoid harsh chemicals or abrasive cleaning agents that can damage the chrome finish.
  • Keep the sensor window clean and free from obstructions for optimal performance.
  • Avoid scratching the sensor lens when cleaning.
  • Replace batteries promptly when the sensor operation becomes erratic or weak.
  • Use high-quality alkaline batteries recommended by the manufacturer.
  • Remove batteries if the valve will not be used for a long period to avoid battery leakage.
  • Periodically check and operate the control cock to ensure it is not stuck.
  • Inspect the flushing valve for any leaks or blockages and clean if necessary.
  • Ensure the concealed installation box is dry and free of debris during routine maintenance.
  • Do not hit or apply excessive force on the sensor unit or control cock.
  • Protect the valve from direct exposure to water jets or aggressive cleaning sprays.

Description
  • Color - STL
  • Over all size in inches - 0inchX0.5inch
  • Over all size in mm - 0x15 mm
  • Design / Model - SENSOR
