JAQUAR FAUCETS  |  SKU: ALD-CHR-683N  |  Code: 64929

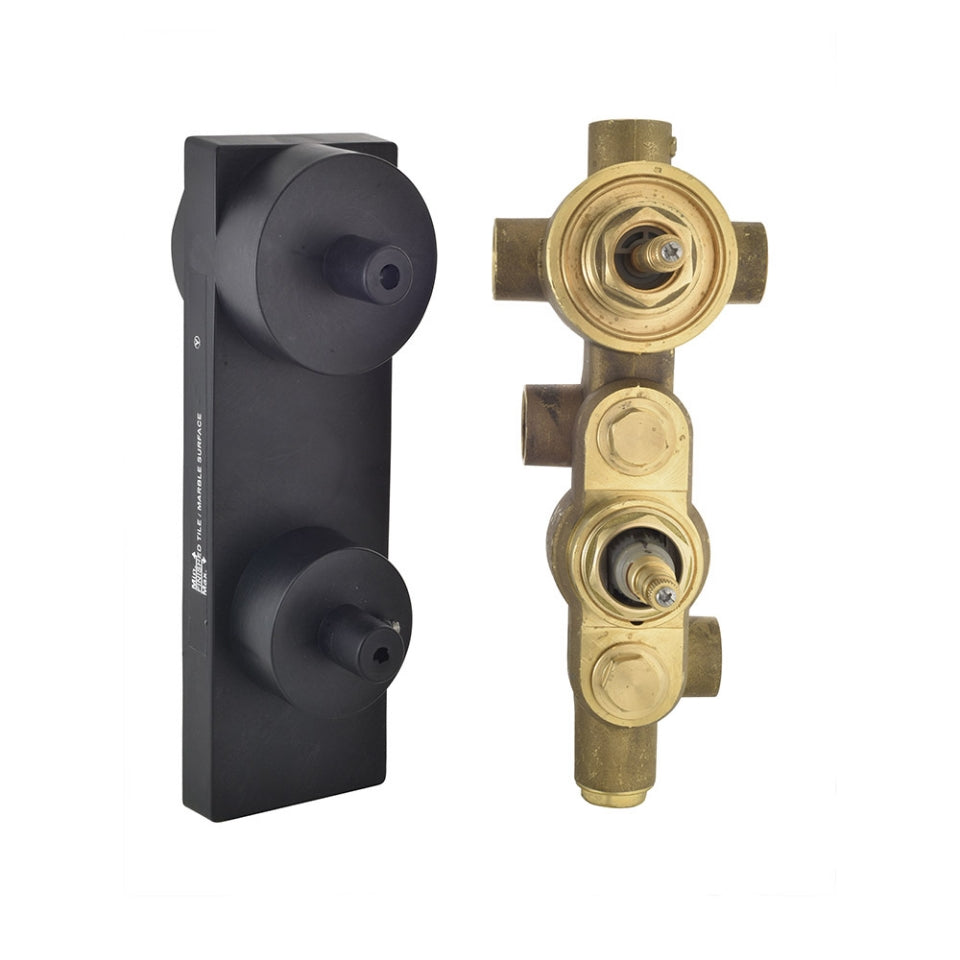

AQUAMAX CONCEALED BODY OF THERMOSTATIC SHOWER MIXER WITH 3-WAY DIVERTER, WITHOUT EXPOSED PARTS & SLEEVE - JAQUAR FAUCETS - ( CHROME - ALLIED - 0x20 mm - 0inchX0.75inch )

₹ 9,856 ₹ 11,200 / Pcs
Tax included

Measurable Sale of Unit: Pcs
Estimated Shipping Date - Thursday, 25 Dec 2025

Specification & Features
  • Type: Concealed thermostatic shower mixer body with 3-way diverter (no exposed parts included)
  • Flow Rate (3 Outlet) : 52 LPM @3 Bar
  • Recommended Water Pressure 0.2 Bar- 5 bar
  • Child-Safe Temperature Lock – Prevents accidental adjustment to dangerously high temperatures.
  • Low & High Pressure Compatible – Works efficiently without a booster pump in low-pressure systems.
  • Material: High-grade brass body with corrosion-resistant internal components
  • Inlet Size: Standard 15mm BSP connections
  • Outlet Options: 3-Way Diverter Function – Allows water supply to three different outlets (e.g., overhead shower, hand shower, bath spout/body jets) -one active at a time
  • Non-Return Valves – Prevents backflow contamination between hot and cold supplies.
  • Silent Operation – Precision-engineered internals ensure smooth, quiet operation.
  • Minimal Maintenance – Internal cartridge can be serviced without removing the entire unit from the wall.
  • Entire system operates mechanically—no electricity required

Care information
  • Regular Cleaning of Exposed Trim-Even though the concealed body is inside the wall, its matching exposed trim (lever, diverter handle, flange) should be cleaned weekly with a soft damp cloth.
  • Mild Soap Cleaning – Use a mild liquid soap with lukewarm water, rinse, and dry with a soft cloth.
  • Avoid Harsh Cleaners – Do not use bleach, acids, or abrasive powders as they damage the finish.
  • Prevent Water Marks – Wipe dry after use, especially in hard water areas, to avoid stains and scaling.
  • Gentle Operation – Move the lever and diverter smoothly; avoid applying excessive force.
  • Professional Servicing – Contact an authorized Jaquar technician for leaks, stiffness, or cartridge issues.
  • Protect During Work – Cover exposed trim during painting or renovation to prevent dust, cement, or paint stains.
  • Don’t Force Stuck Parts – If movement feels stiff, get it serviced instead of forcing the handle.

Description

The Aquamax Concealed Body of Thermostatic Shower Mixer with a 3-way diverter offers precise temperature control while maintaining a minimalist aesthetic, as it includes no exposed parts. Designed for seamless integration within the wall, it ensures durability and ease of installation. This chrome-finished unit supports versatile water outlet options, enhancing your shower experience with safety and convenience. Ideal for modern bathrooms requiring a sleek and expert-grade thermostatic solution.

  • Color - CHROME
  • Over all size in inches - 0inchX0.75inch
  • Over all size in mm - 0x20 mm
  • Design / Model - ALLIED
