GEBERIT  |  SKU: 111.796.00.1  |  Code: 29202

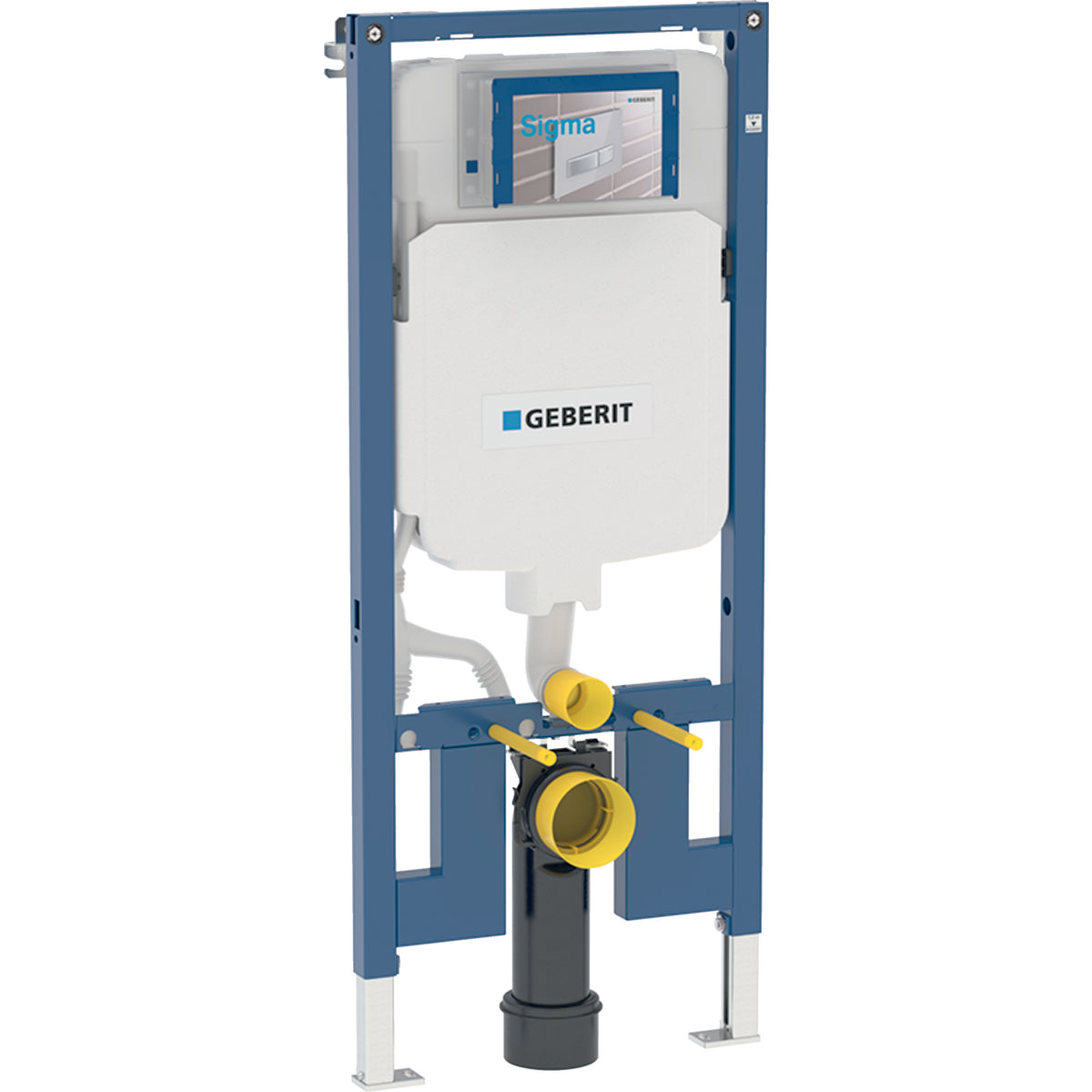

DUOFIX CONC.CISTERN UP-720 8CM THICK F/M - GEBERIT - ( - SIGMA - 0x0 mm - 0inchx0inch )

₹ 24,624 ₹ 34,200 / Pcs
Tax included

Measurable Sale of Unit: Pcs
Estimated Shipping Date - Tuesday, 21 Oct 2025

Specification & Features

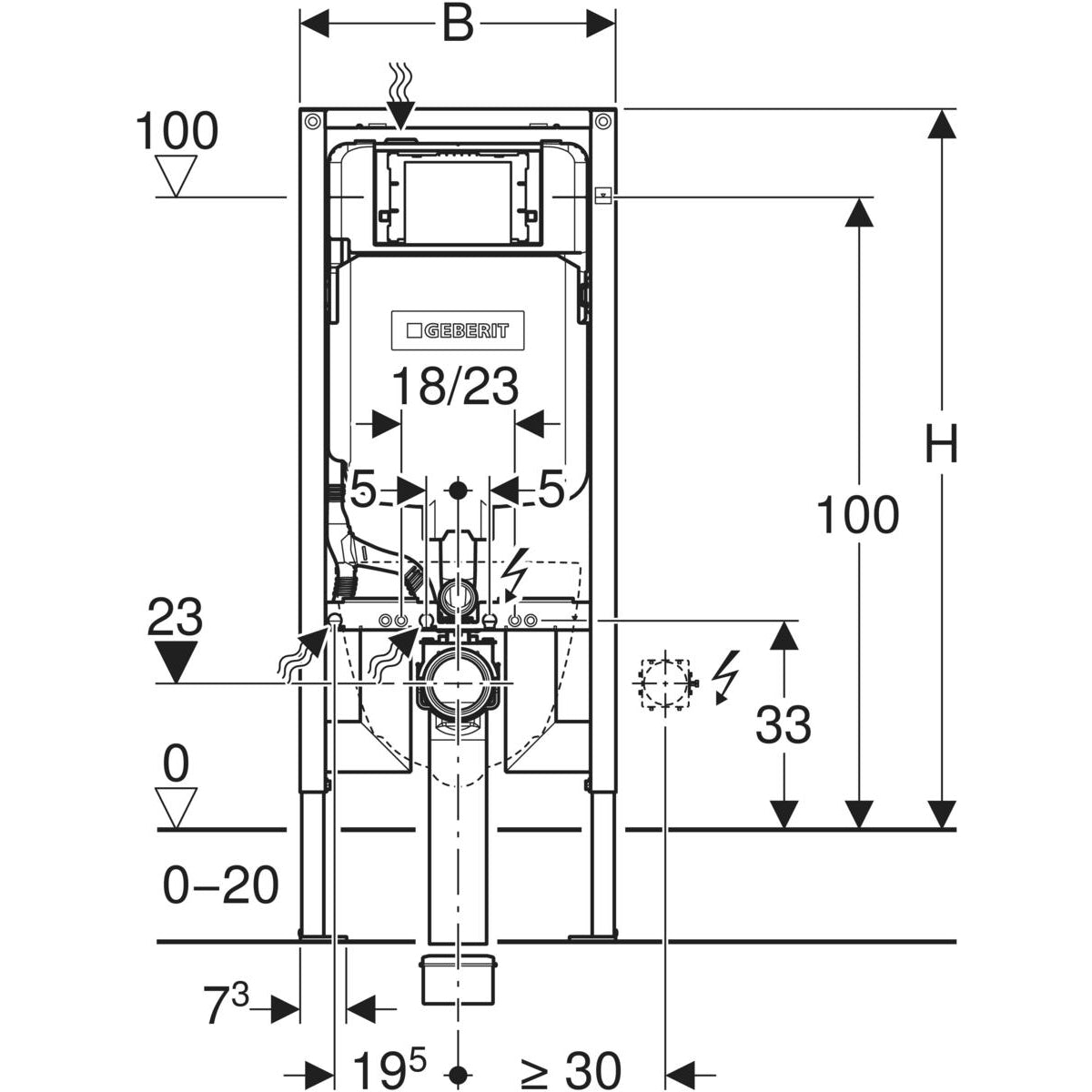

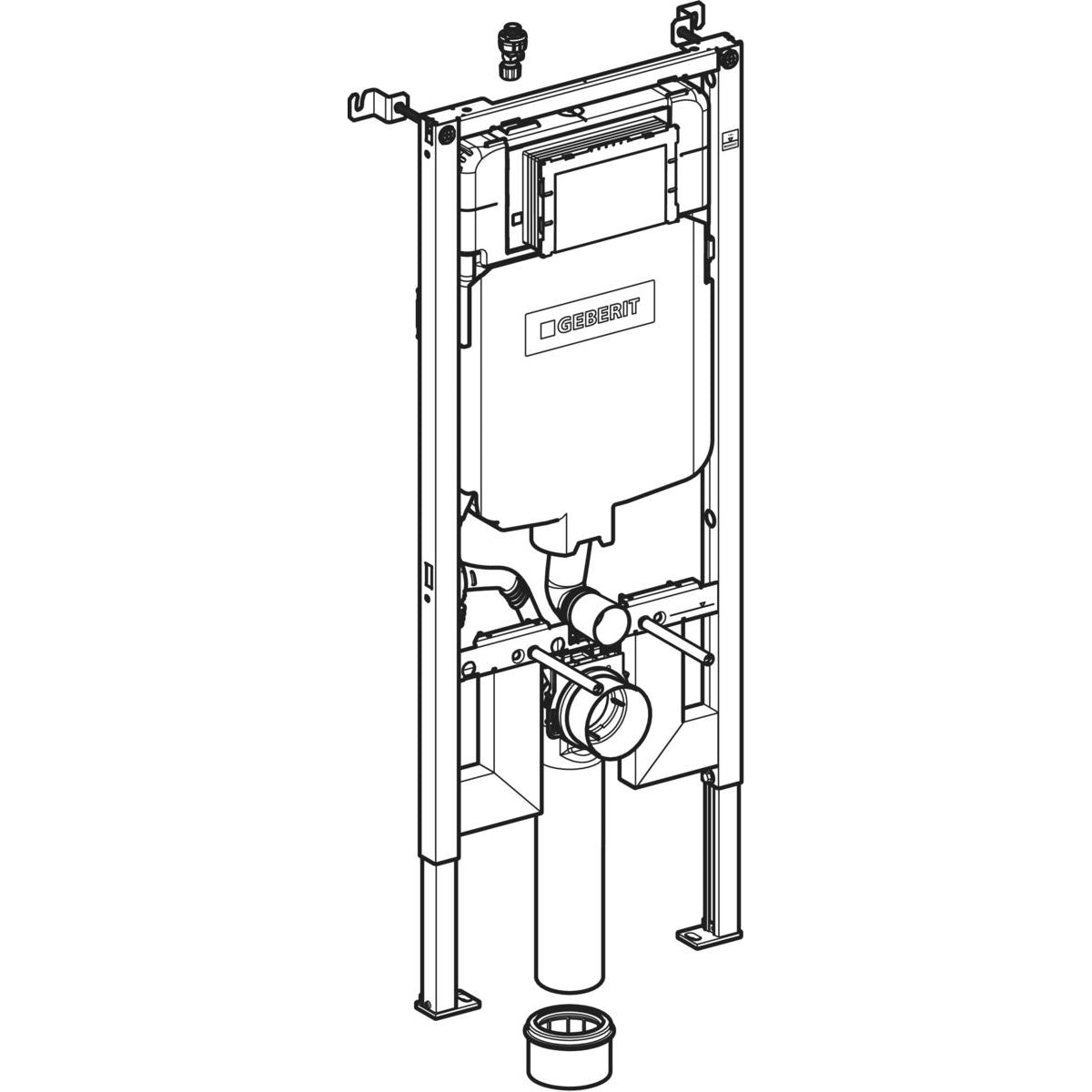

  • Frame Type: Self-supporting steel frame, powder-coated for corrosion protection
  • Cistern Type: Concealed cistern (front discharge) built into the frame, insulated against condensation
  • Flush Volumes (Factory Setting): 6 litres (large) / 3 litres (small) dual flush
  • Flush Adjustment Range:
      • Large flush: 4.5 / 6 / 7.5 litres • Small flush: 3 / 4 litres
  • Operating Pressure: 0.1 to 10 bar (i.e. works over a wide range of supply pressures)

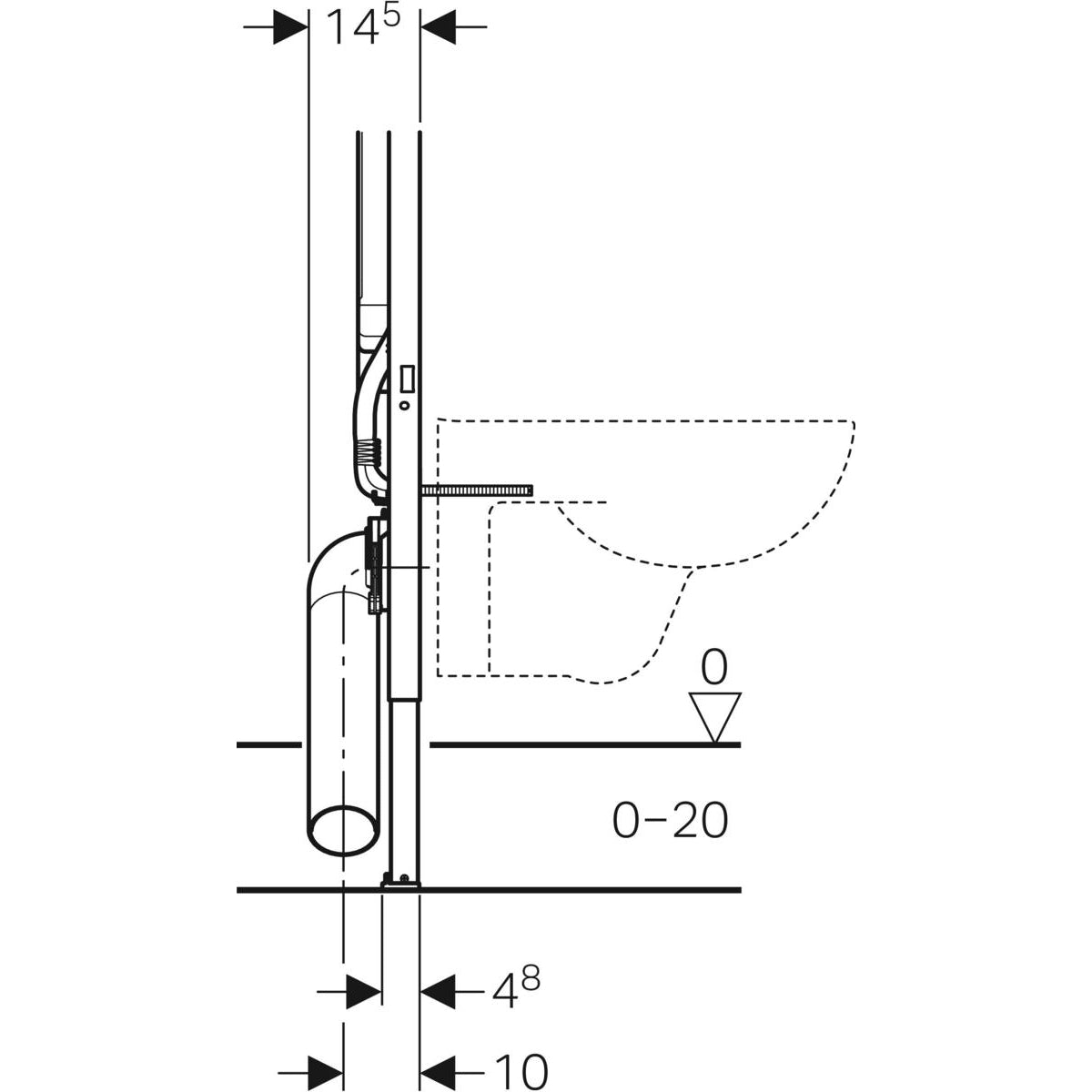

  • Application Type: Suitable for drywall construction, prewall installations, room-height installation walls, and installation in floor constructions 0–20 cm
  • Leg supports adjustable in height; non-slip base plates
  • Frame has Ø9 mm drill holes for fastening in wood / stud frameworks
  • Connection bend (waste outlet) can be mounted at variable depths without tools
  • Mounting: For drywall, prewall, and room-height installations

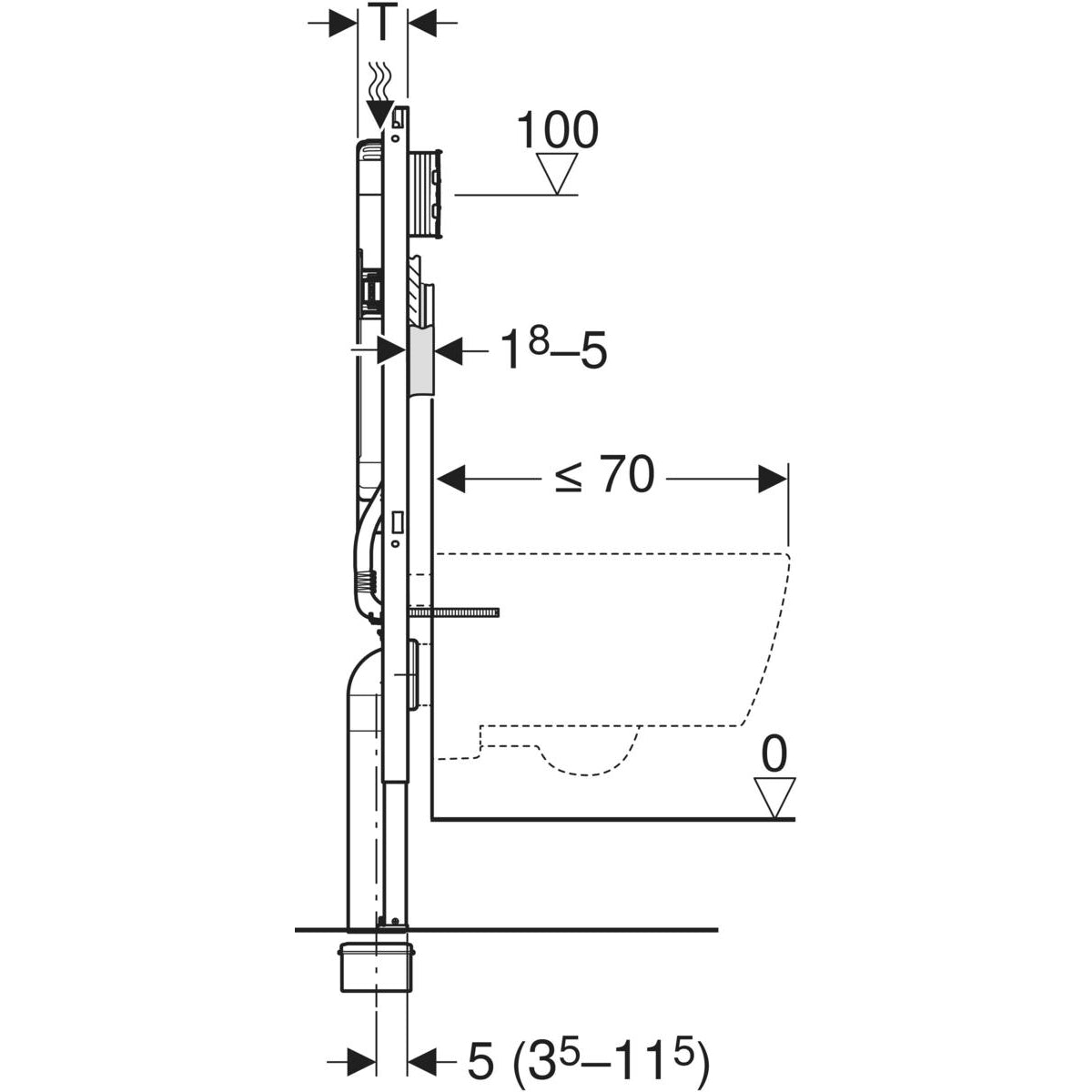

  • Toilet: For wall-hung WCs up to 70 cm projection
  • Supply: Supply from top left, with integrated stop valve
  • Purpose: To provide a hidden cistern and strong support structure for a wall-hung toilet in bathrooms, with clean aesthetics and hidden plumbing.
  • Installation Scenarios: Use in new builds or remodels where a drywall/prewall system is employed, or in installations requiring a shallow wall depth.
  • Water System Integration: Compatible with low and high water pressure systems thanks to its broad operating pressure range.

Care information
  • Flush Lines Before Use: During installation, flush water supply and drain lines thoroughly to clear debris, which could harm internal valves
  • Soft Cleaning Only: Use soft cloths and mild, non-abrasive cleaners on visible plates and flush actuators.
  • Avoid Harsh Chemicals: Do not use bleach, strong acids, alkalis, or scouring powders which can damage plastic and metal parts.
  • Wipe Dry: After cleaning, dry surfaces to prevent mineral deposits or water spots.
  • Operate Periodically: If toilet is seldom used, flush periodically to keep mechanisms moving smoothly.
  • Inspect Seals & Connections: Over time, check seals, gaskets, fasteners, and frame fixings for wear or leaks.
  • Use Genuine Spares: On replacing valves, seals or other parts, use Geberit original spare parts to maintain correct functioning.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Description

The DUOFIX CONC.CISTERN UP-720 by Geberit features an 8cm thick concrete design, ensuring robust strength and durability. Engineered for precise installation, it supports wall-hung fixtures with reliable water storage and efficient flushing performance. Ideal for professional applications, this cistern combines structural stability with Geberit's trusted functionality, making it a dependable component in modern sanitary systems.

  • Over all size in inches - 0inchX0inch
  • Over all size in mm - 0x0 mm
  • Design / Model - SIGMA
