GEBERIT  |  SKU: 111.003.00.1  |  Code: 51358

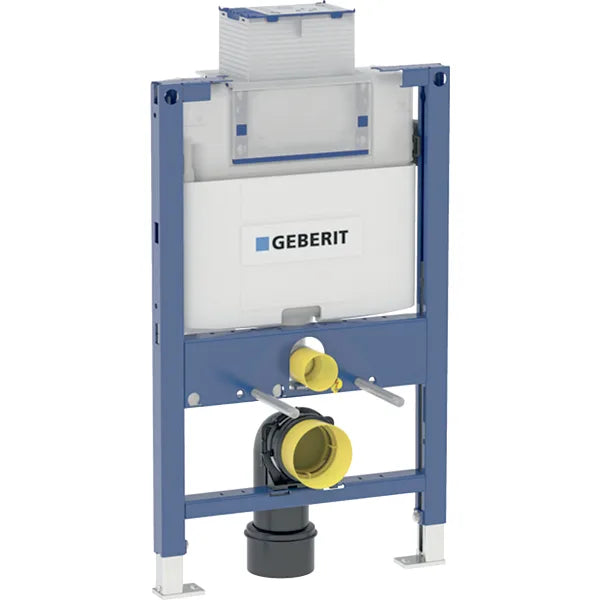

CONC.CIST OMEGA FULL FRAME 82CM HEIGHT 12CM THICK - GEBERIT - ( - OMEGA-LOW HIGHT - 0x0 mm - 0inchx0inch )

₹ 22,392 ₹ 31,100 / Pcs
Tax included

Measurable Sale of Unit: Pcs
Estimated Shipping Date - Tuesday, 21 Oct 2025

Specification & Features
  • Height: 82 cm frame height (for wall hung WC)
  • Cistern Type: Omega concealed cistern, depth 12 cm (built within the frame)
  • Flush Volumes: Factory setting 6 / 3 litres (dual flush)
  • Adjustable Flush Range (Large Flush): 4 / 4.5 / 6 / 7.5 litres
  • Adjustable Flush Range (Small Flush): 2–4 litres
  • Operating Flow Pressure Range: 0.1 to 10 bar
  • Maximum Water Temperature: 25 °C
  • Flow Rate at 3 bar: 0.16 litres per second
  • Minimum Flow Pressure: 0.1 bar
  • Statically self-supporting, corrosion-protected (powder coat)
  • Rotatable foot plates; non-slip leg supports
  • Frame with Ø9 mm drilling holes for fastening in timber frame construction
  • Concealed cistern with top or front actuation
  • Fully insulated against condensation
  • Water supply connection either from left or rear left
  • Protection cover box for service opening (to protect against moisture/dirt)
  • Water supply connection R½" (integrated angle stop valve + hand wheel)
  • Purpose: For installing a wall-hung WC (toilet), mounting it securely while hiding the cistern and plumbing within the wall frame.
  • Suitable in: Drywall constructions, system walls, prewall installations, as part of Geberit Duofix system walls.
  • Water Supply Conditions: Works across a broad pressure range (0.1 to 10 bar), meaning it is suitable in low or high pressure systems.

Care information
  • Flush During Commissioning: Before final installation, flush plumbing lines thoroughly to clear debris that could clog cistern mechanisms.
  • Periodic Inspection: Check for leaks, loosening of frame bolts, condition of seals, fixings.
  • Avoid Aggressive Additives: Do not use bleach, strong acids, alkalis, or abrasive powders that could damage plastic cistern internals or coatings.
  • Wipe Dry: After cleaning, dry surfaces to prevent water stains or mineral buildup.
  • Operate Flushing Mechanisms: If the WC is not used often, activate flush occasionally to maintain smooth movement and avoid sticking.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Description

The CONC.CIST OMEGA full frame offers a robust structure with a height of 82 cm and a thickness of 12 cm, engineered for durability and stability. Designed for optimal performance, this frame ensures reliable support, making it ideal for various installation needs. Its precise dimensions provide a strong foundation, enhancing the longevity and safety of your setup.

  • Over all size in inches - 0inchX0inch
  • Over all size in mm - 0x0 mm
  • Design / Model - OMEGA-LOW HIGHT
