GROHE  |  SKU: 1039949990  |  Code: 61878

DUO FRAME - GROHE - ( - G3 - RAPIDO SHOWER FRAME - 0x15 mm - 0inchX0.6inch )

₹ 46,980  ₹ 81,000 / Pcs
Tax included

Measurable Sale of Unit: Pcs

Visual : https://webapplication.tilesdisplay.in/frontend/login-with/api/eyJpdiI6IlNHZ2NTRFFTMlVlTnN5WHk1bE5uVlE9PSIsInZhbHVlIjoiYzBnV3QxQXAyU1dIZmJYYmQ0d2tyQT09IiwibWFjIjoiZDRjYjY3MjY5Zjg2ZDkxZGU2M2Y3MDA1NjIzMGQ0ZTNmNzRkYTQzYTNjNWU2MWI3NjA5YWQ4MDBlN2Q1NGRmZSJ9?width=1280&height=1280&matt=0&path=https://www.chabsons.com/cdn/shop/files/1039949990_1_1.jpg?v=1771912597   https://webapplication.tilesdisplay.in/frontend/login-with/api/eyJpdiI6IlNHZ2NTRFFTMlVlTnN5WHk1bE5uVlE9PSIsInZhbHVlIjoiYzBnV3QxQXAyU1dIZmJYYmQ0d2tyQT09IiwibWFjIjoiZDRjYjY3MjY5Zjg2ZDkxZGU2M2Y3MDA1NjIzMGQ0ZTNmNzRkYTQzYTNjNWU2MWI3NjA5YWQ4MDBlN2Q1NGRmZSJ9?width=1280&height=1280&matt=0&path=https://www.chabsons.com/cdn/shop/files/1039949990_1_1.jpg?v=1771912597
Estimated Shipping Date - Sunday, 17 May 2026
Shipping this product within Karnataka only

Specification & Features
  • SKU / Product Number: 1039949990
  • EAN: 4067393034346
  • Product Type: Shower frame element for duo concealed shower system
  • Frame Material: Powder-coated, self-supporting steel frame
  • Assembly: Completely pre-assembled with outlets and pipework
  • Outlets Included: Wall outlets for hand shower and head shower
  • Rough-In Boxes:GROHE Rapido SmartBox with two bottom inlets
  • GROHE Rainshower Universal rough-in box with two inlets (max 9.5 l/min per head shower)
  • Mixed Water Pipes: Pre-mounted, insulated for clean installation
  • Installation Type: Designed for on-the-wall installation or dry cladding

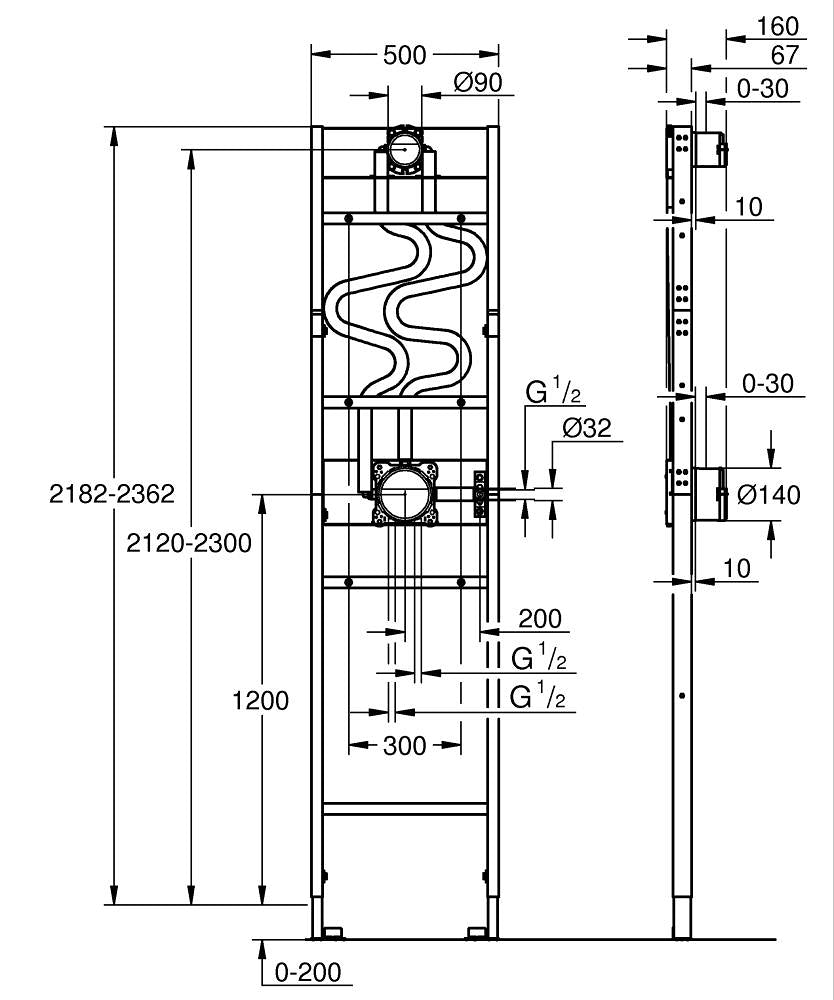

  • Mounting Depth (to frame front): Minimum 67 mm
  • Installation Depth Range (to finished wall): 77 mm – 107 mm
  • Adjustability: Head shower outlet height can be adjusted by 180 mm
  • Inlet Connections: 2 inlets below, 1/2″ male thread
  • Sealing: Sealing fleeces included, leak-tested at factory
  • Compatibility: Works with Grohtherm concealed shower trim sets and GROHE outlet elbows (1/2″)
  • Optional Accessories: Wall mounting brackets (SKU 1039999990, sold separately)

Care information
  • Post-Installation Inspection: After installation, ensure all connections are secure and check for any leaks before wall finishing.
  • Surface Cleaning: Gently wipe the steel frame surfaces with a soft cloth; avoid harsh abrasives or strong chemicals that could damage protective coatings.
  • Avoid Aggressive Cleaners: Do not use acidic or alkaline cleaners on the powder-coated frame parts.
  • Check Seals: Periodically inspect the sealing fleeces and connections for wear or signs of moisture and replace as needed.
  • Protect During Work: Avoid knocking or scratching the frame edges with tools during tiling or drywall installation.
  • Moisture Control: Ensure proper ventilation in bathroom spaces to prevent condensation buildup on metal components.
  • Follow Installation Guide: Always refer to manufacturer installation drawings and guidelines during construction to maintain warranty and performance.

Description

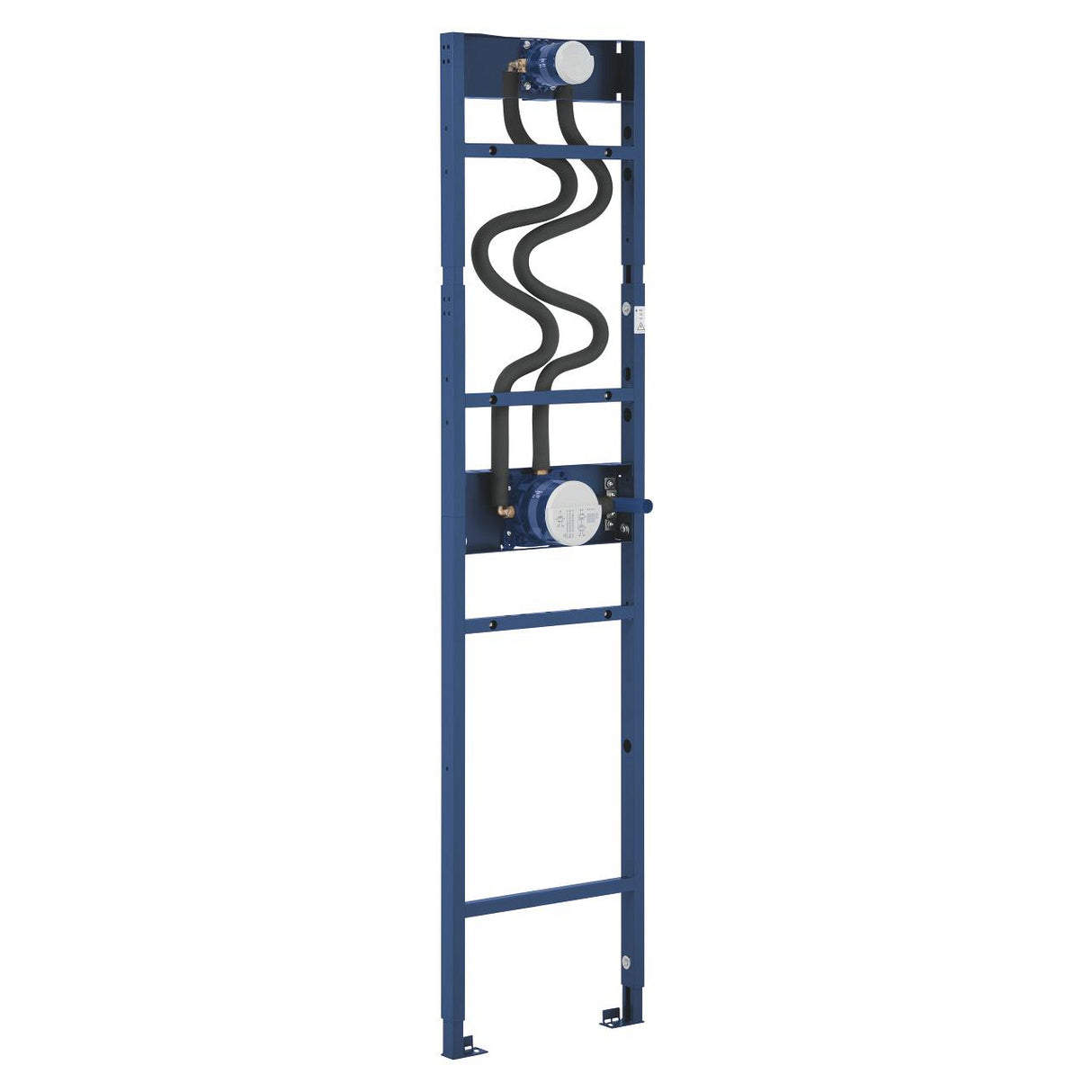

The Grohe Rapido Shower Frame Element for Duo Concealed Shower Installation  1039949990 is a pre-assembled, powder-coated steel frame designed to support a concealed shower system with three outlets, offering reliable structure and easy installation. It comes with pre-mounted wall outlets for hand and head shower, mixed water pipes, and dual rough-in boxes for flexible shower setup. Designed for on-the-wall or dry-cladding installation with adjustable depth and head shower outlet height, it simplifies concealed shower build-outs

  • Over all size in inches - 0inchX0.5inch
  • Over all size in mm - 0x15 mm
  • Design / Model - G3 - RAPIDO SHOWER FRAME
